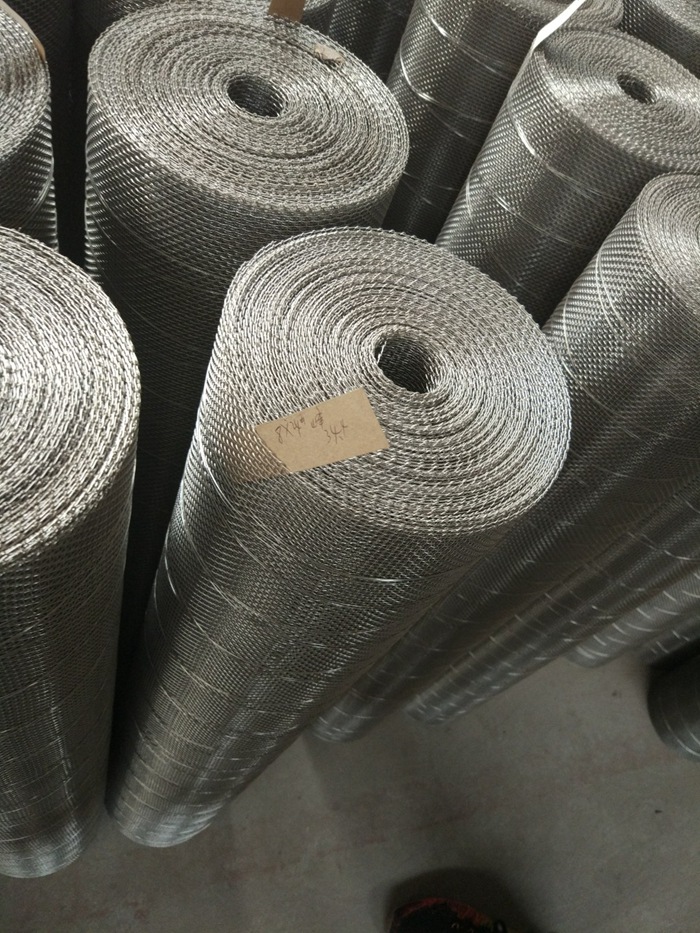

Stainless steel wire mesh

Materials:	SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.
wire diameter	wire diameter: 0.15mm-2.0mm Mesh opening: 3-400mesh
Size:	Standard width: 0.6m-1.5m Standard length: 30m/roll
Weave:	Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
Characteristics:	Excellent resistance against acid, alkali, heat and corrosion,
Usage:	The stainless steel wire mesh uses in oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making, etc.

Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter (MM)	Aperture (MM)	Material	Mesh/inch	Wire Diameter (MM)	Aperture (MM)	Material
2mesh	1.8	10.9	304 /316	70mesh	0.14	0.223	304 /316
3mesh	1.6	6.866	304 /316	80mesh	0.12	0.198	304 /316
4mesh	1.2	5.15	304 /316	90mesh	0.11	0.172	304 /316
5mesh	0.91	4.17	304 /316	100mesh	0.1	0.154	304 /316
6mesh	0.8	3.433	304 /316	120mesh	0.08	0.132	304 /316
8mesh	0.6	2.575	304 /316	140mesh	0.07	0.111	304 /316
10mesh	0.55	1.99	304 /316	150mesh	0.065	0.104	304 /316
12mesh	0.5	1.616	304 /316	160mesh	0.065	0.094	304 /316
14mesh	0.45	1.362	304 /316	180mesh	0.053	0.088	304 /316
16mesh	0.4	1.188	304 /316	200mesh	0.053	0.074	304 /316
18mesh	0.35	1.06	304 /316	250mesh	0.04	0.061	316
20mesh	0.3	0.97	304 /316	300mesh	0.035	0.049	316
26mesh	0.28	0.696	304 /316	325mesh	0.03	0.048	316L
30mesh	0.25	0.596	304 /316	350mesh	0.03	0.048	316L
40mesh	0.21	0.425	304 /316	400mesh	0.0254	0.0385	316L
50mesh	0.19	0.318	304 /316	500mesh	0.0254	0.0254	316L
60mesh	0.15	0.273	304 /316	635mesh	0.0203	0.0203	316L
Width of stainless steel wire mesh: 0.4m-6m, Length: 20m or 30m
