galvanzied welded wire mesh
Model Number:1/2
Place of Origin:hebei
Added:2018-02-27
Views:
Telephone:
Keywords:welded wire mesh,pvc coated welded mesh
下一个产品 没有了

详细介绍

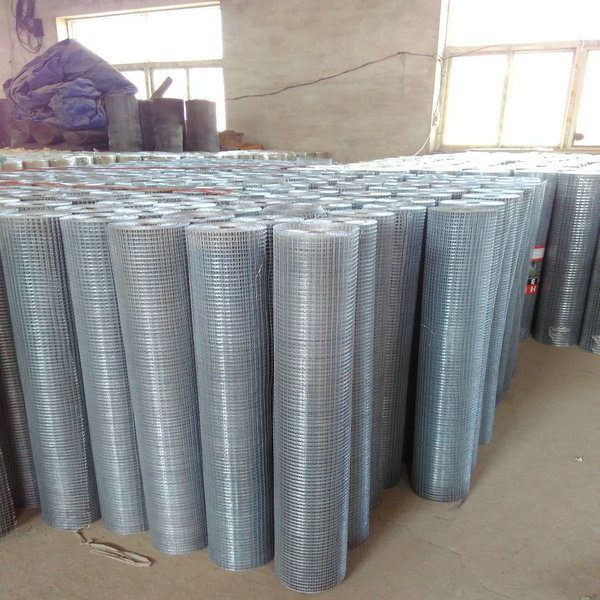

welded wire mesh



Material about welded wire mesh

Electro galvanized wire, hot-dipped galvanized.

We choose the best low carbon wire or stainless steel wire material available in China. The high quality & reasonable price product is from the right material.
[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m2.
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m2


Mesh Size

Wire Diameter

Panel Width & length

In MM

In Inch

MM

12.7mm

1/2Inch

1.0mm - 2.0mm

3Feet x 6Feet
4Feet x 8Feet
5Feet x 10Feet
1M X 2M 1.5M X 3M
2M X 4M
Other panel sizes can also be made according to request

25.4mm

1Inch

1.5mm - 3.5mm

31.8mm

1 1/4Inch

2.0mm - 4.0mm

38.1mm

1 1/2Inch

2.0mm - 5.0mm

50.8mm

2Inch

2.0mm - 6.0mm

76.2mm

3Inch

3.0mm - 7.0mm

101.6mm

4Inch

3.0mm - 8.0mm

127mm

5Inch

4.0mm - 9.0mm

152.4mm

6Inch

4.0mm - 10.0mm
